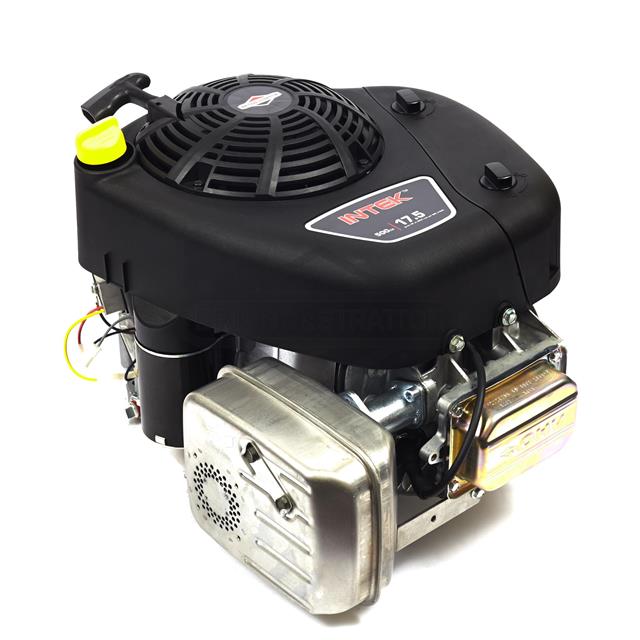

Briggs & Stratton Engine 31R907-0006-G1 17.5 hp Intek

Save: 10% off

Always Free Shipping
Add Qty:


31R907-0006-G1 Briggs & Stratton Engine, 17.5 HP, 500cc, Intek, Free Shipping, No Tax, Crankshaft: 1 in. Dia x 3-5/32 in. Long, 1/4 in. keyway, tapped 7/16-20 in.

Replaces: 31C707-3005-G5

  • 12 volt electric starter with backup pull starter
  • 9 amp charging  system
  • Muffler included
  • No Fuel Pump
  • Dura-Bore cast iron cylinder sleeve for extended life
  • Advanced Debris Management System with our largest dual seal, cartridge-style air filter that provides maximum protection and extends engine life
  • Float carburetor for consistent easy starting Overhead valve design (OHV) for cooler operation and longer valve life Mechanical Governor
  • Consumer engine warranty 2yrs


* Charging system wiring harness - If the original engine is equipped with a Six Pin Wiring Harness transfer to the replacement engine.

* Transfer Muffler and/or Spark Arrester Assembly from the original engine if suitable for additional service or add new parts as required.

* Be aware other website claim this engine has a fuel pump, It does NOT have a fuel pump.

500 CC
Bore 3.56 in. (90.50 mm)
Stroke 3.06 in. (77.80 mm)
Oil Capacity 48 fl. oz. (1.40 L)


Engine Specifications


Model Series 31R9
Power Lbs/Ft of Torque 17.5
Displacement (cc) 500
Oil Capacity (oz) 48
Valve Configuration OHV
Flywheel Torque (lbs/ft) 110
Governor Arm Torque (lbs/in) 40
Plug Gap (in) 0.03
Intake Valve (in) .003-.005
Exhaust Valve (in) .005-.007
Air Gap (in) .010-.014
Flywheel Puller Part 19203


Common Parts

594201 Filter-A/C Cartridge (Canister)
695666 Filter-Fuel (Includes Paper Element With A 30 Micron Rating)
691035 Filter-Fuel (Includes Paper Element With A 40 Micron Rating)
394358S Filter-Fuel (White, 75 Microns)
798576 Filter-Oil (Premium)(Orange)
696854 Filter-Oil (Premium)(Yellow)
492932S Filter-Oil (Standard)(Black)
797704 Filter-Pre Cleaner
796584 Gasket-Cylinder Head
796184 Kit-Carburetor Overhaul (Nikki)
593934 Motor-Starter
795997 Muffler
795998 Muffler
691043 Plug-Spark (EMS)
19203 Puller-Flywheel
  • Model: 31R907-0006-G1
  • UPC: 047282017524
  • Shipping Weight: 81lbs
  • Manufactured by: Briggs-Stratton
