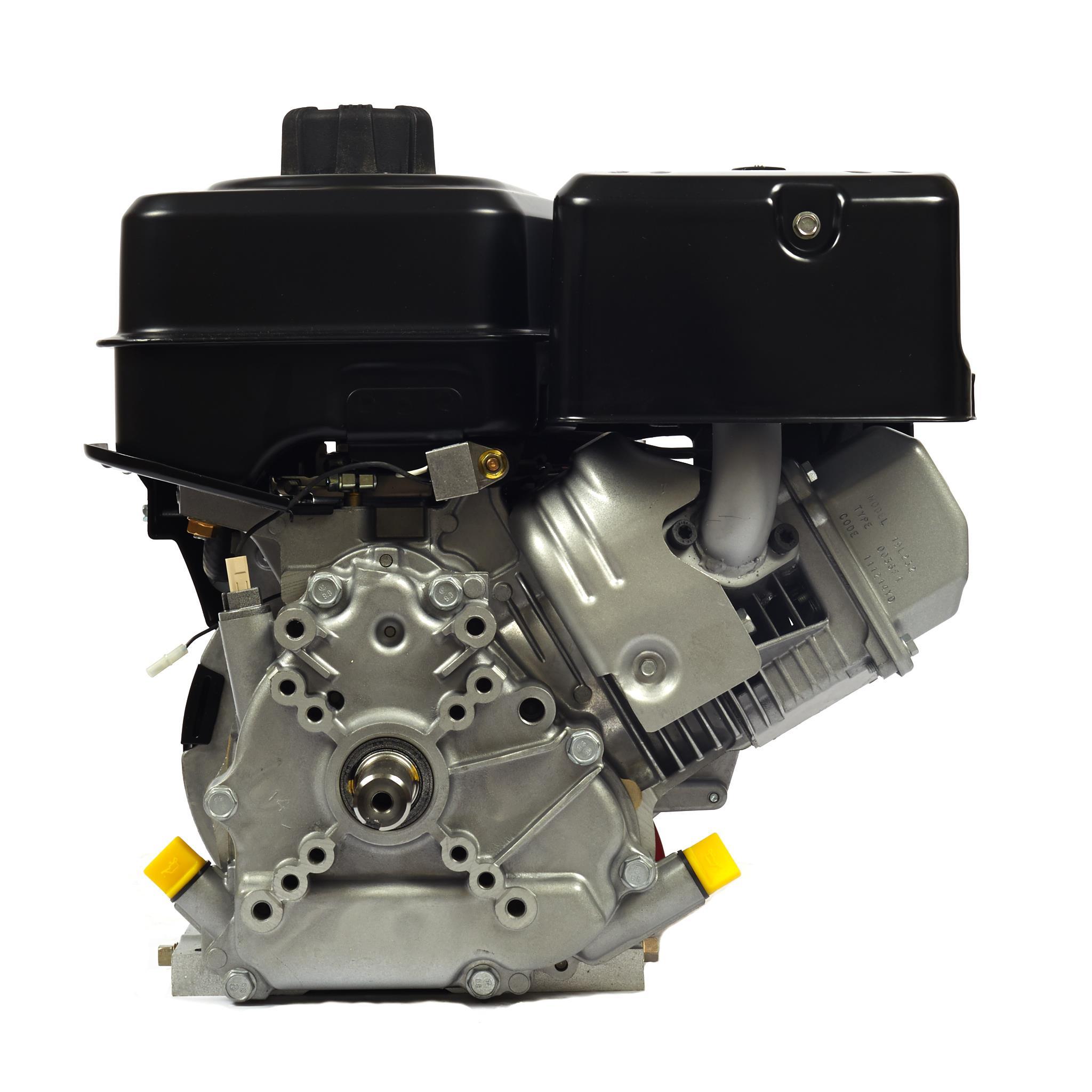

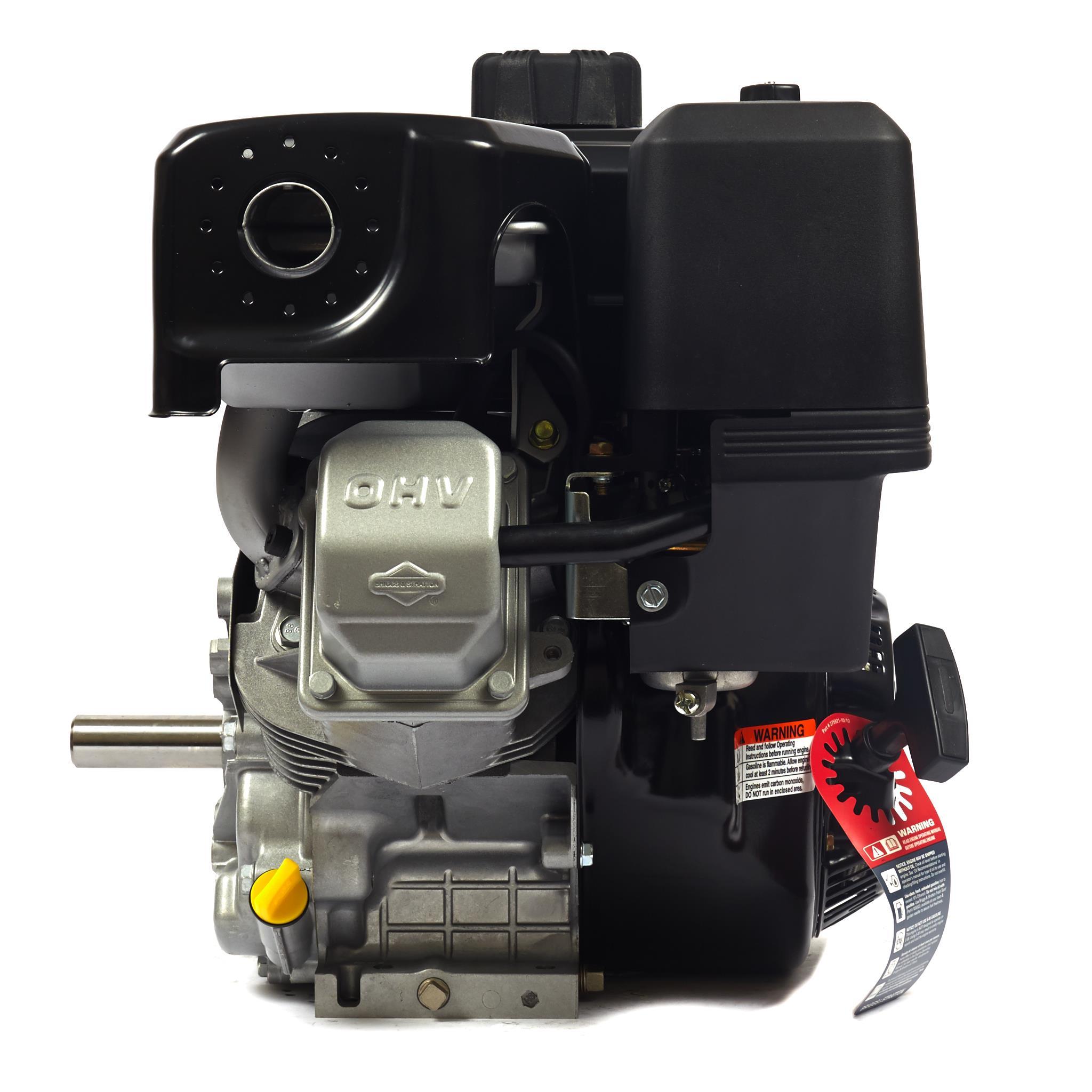

Briggs & Stratton Engine 19L237-0319-F1 10 hp 306cc Vanguard

 $850.00$918.00
Save: 7% off

Always Free Shipping
Add Qty:

Description

10 hp, 305cc, 19L237-0319-F1 10HP, Horizontal Briggs & Stratton Vanguard Engine, Free Shipping, No Tax

Engine Specifications

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 19L237-0319-F1
Gross Horsepower* 10.00
Air Cleaner AIR CLEANER, CARTRIDGE W/PRE FI
Bearings BEARINGS, FLANGE MOUNT BALL W/
Blower Housing PLATE, TRIM - COLOR 290 - SATIN BLACK
Bore Type Sleevebo
Bore Size 3.120
Stroke 2.440
Casing Clamps CASING CLAMP & METRIC SCREW W
Controls Groups CONTROL PANEL KEY
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, SPARK ARRESTOR ASSY LOOS
Dipsticks DIPSTICK, BOTH SIDES
Oil Drain OIL FILL, DUAL
Flywheel FLYWHEEL, HEAVY EQUIP FOR ELEC START
Fuel System FUEL TANK CAP W/CARBON I
Exhaust MUFFLER, SUPER LO-TONE W/T
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 10:30 O'CLOC
Model/Type/Trim 19L237-0319-F1
Air Cleaner High Mount Dual (Oval)
Alternator 10 amp
Carburetor Manual Choke
Casing Clamp Installed
Controls Manual Friction/Equip for Rem
Crankshaft 1" Dia. 3.51" EXT
Crankshaft Details 1/4" Keyway, 7/16-20 D&T
Emissions Certification EPA EXH, EPA EVAP,EU
Engine Idle Speed Governed Idle 1750 +/- 100 RPM
Engine Sold In USA (49), EU, UK
Engine Speed 3600+/-100
Flywheel Heavy - Cast Iron
Fuel Cap Black CIC
Fuel Pump Without
Fuel Tank 3.6L Metal P290 Satin Black
Label Power 10.0 Gross HP 305cc Vanguard
Muffler Guard Stamped
Oil Dipstick Dual Low Mount
Regulator Installed
Rewind Position 10:30
Wire Harness Without

Technical Specifications

Model Series 19L2
Power Lbs/Ft of Torque 12.7
Displacement 305
Oil Capacity 28 oz (0.83 l)
Valve Configuration OHV
Flywheel Torque 125 lb/ft (169.5 Nm)
Governor Arm Torque 40 lb/in (4.5 Nm)
Carb Mount 80 lb/in (9.0 Nm)
Plug Gap 0.03 in (0.76 mm)
Intake Valve .004-.006 in (.10-.15 mm)
Exhaust Valve .004-.006 in (.10-.15 mm)
Idle Speed 1750
Air Gap .010-.014 in (.25-.36 mm)
Flywheel Puller Part 19203
Flywheel Holder Part 19433
Connecting Rod Torque 100 lb/in (11.5 Nm)
Sump Torque 230 lb/in (26.0 Nm)
Head Torque 250 lb/in (28.2 Nm)
Top No Load (rpms) 3600

Specs

14.50 Gross Torque
306 CC
Bore 3.12 in. (79.2 mm)
Stroke 2.44 in. (61.9 mm)
Oil Capacity 26-28 fl. oz. (0.77 - 0.83 L)

  • Model: 19L237-0319-F1
  • UPC: 024847188738
  • Shipping Weight: 60lbs
  • Manufactured by: Briggs-Stratton
