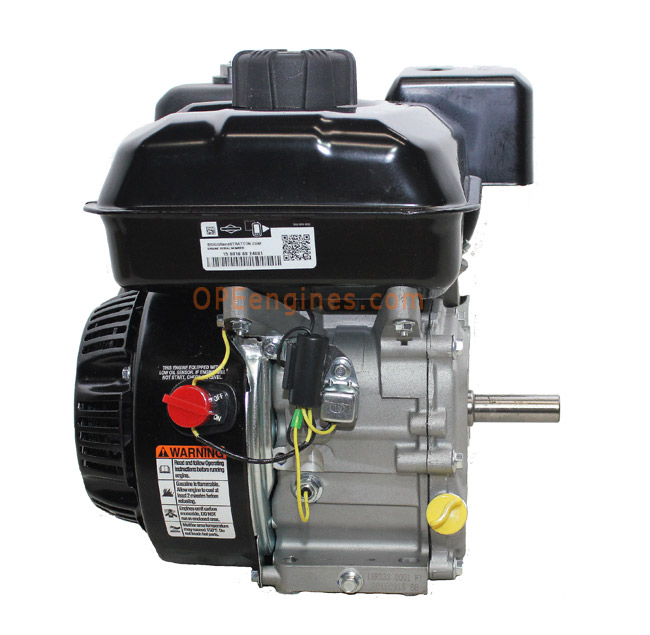

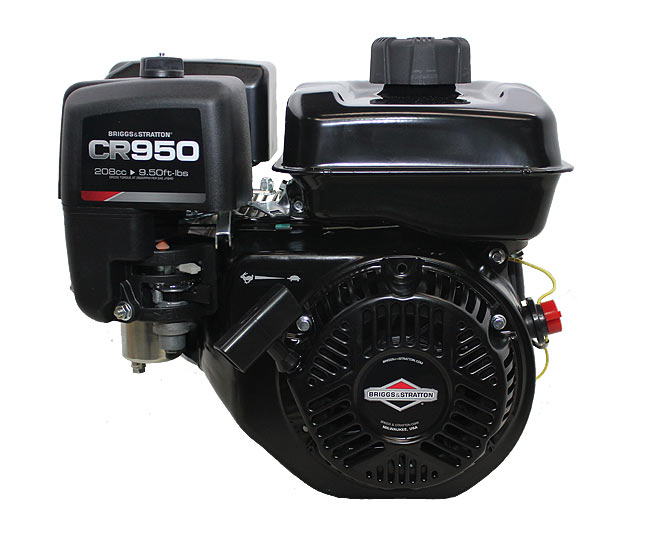

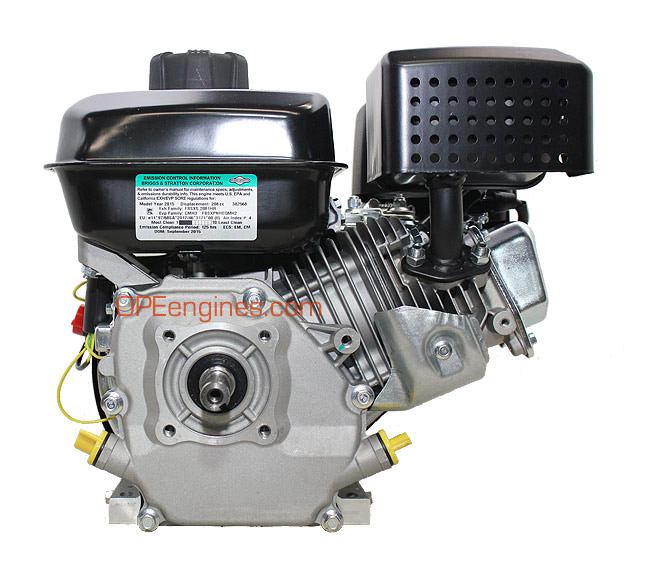

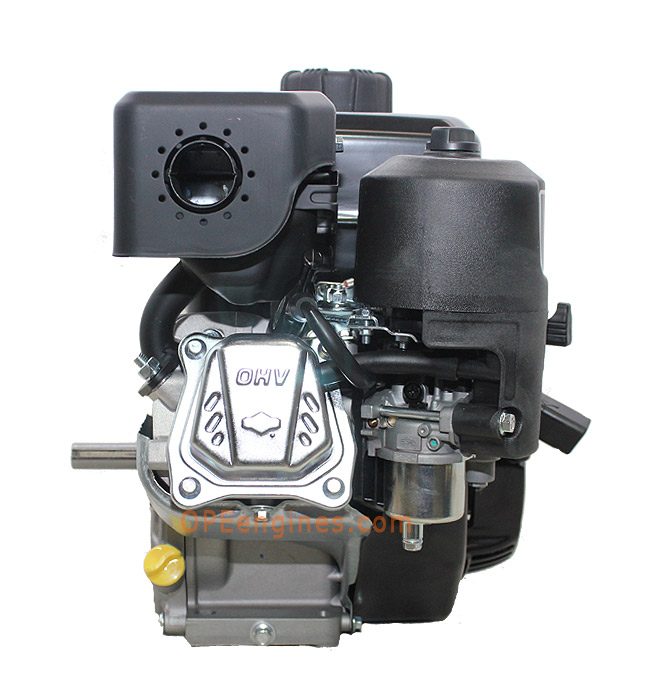

Briggs & Stratton Engine 13R232-0001-F1 9.5 Power 208cc 3/4 CS

Briggs & Stratton Engine 13R232-0001-F1 9.5 Power 208cc 3/4 CS

Click to enlarge

Briggs & Stratton Engine 13R232-0001-F1 9.5 Power 208cc 3/4 CS

$350.00$428.43
Save: 18% off

Add Qty:

Description

13R232-0001-F1 Briggs & Stratton Engine, 9.5 Power Lbs/Ft of Torque, 208cc, CR950, 3/4 in Crankshaft, Free Shipping, No Tax, 1 to 3 Day Delivery.

OPEengines estimates this engines horsepower at be around an 6.5 hp to 7 hp engine.
Good replacement for some Troy Bilt Tiller Pony and Horse models.

Do NOT use this engine on blower-vac, muffler interference on mounting up to blower housing plate.

Crankshaft: 3/4 inch Diameter x 2-27/64 inch PTO Length, 3/16 inch keyway tapped 5/16-24
Dura-Bore cast iron cylinder sleeve for extended life
Maintenance-free Magnetron electronic ignition for quick, dependable starts
Overhead valve design (OHV) for cooler operation and longer valve life
Float feed carburetor delivers consistent one pull start
PTO Ball Bearing
Low Oil Guard
Dual-Clean air cleaner pleated paper filet with a foam pre-cleaner ensures maximum protection for extended engine life.
Both Manual & Remote Throttle Control
Engine Type: OHV 950 Series
Displacement 208cc
Torque: 9.50 ft./lbs.
Bore x Stroke: 2.75 inch x 2.12 inch
Start Type: Recoil
Cooling System: Air Cooled
Air Cleaner Type: Dual Element
Oil Capacity: 20 oz
Ignition System: Electronic
Fuel Type: Gasoline
Muffler Included: Yes
Warranty 2 yr consumer, 1 yr commercial

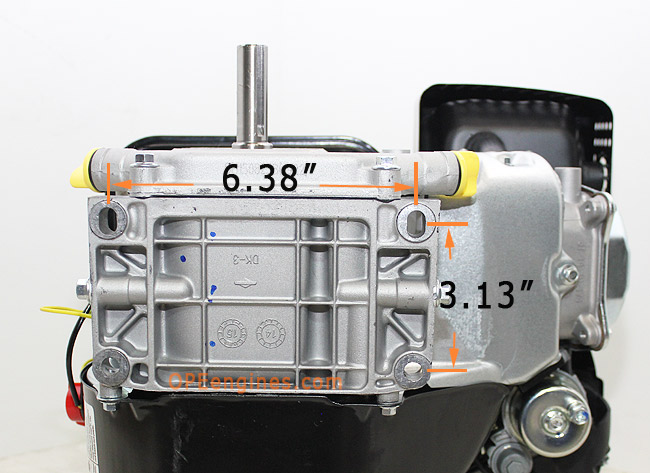

Dimensions: 10 1/4 inch L x 14 2/5 inch W x 14 /13/16 inch H
Base to center line of crankshaft is 4.17"

Specs

Specifications:
Horizontal Cylinder-
Top No Load Speed Set Eng No-load Speed To 3300 +/-100 Rpm-
Bearings: Ball Bearings-
Bore Type: Sleevebore-
Bore Size: 2.76 Stroke 2.13-
Cylinder Head Cylinder: Aluminum W/c.i.sleeve-
Dual Oil Drain Oil Drain-
Fuel Shut Off Valve-
Flywheel: Heavy, Cast Iron-
Governor: Mechanical Governor-
Exhaust Muffler: Square Lo-tone-
Rewind Position: 10:00 O'clock

Model: 13R232-0001-F1
UPC: 024847938319
Shipping Weight: 35lbs
Manufactured by: Briggs-Stratton
