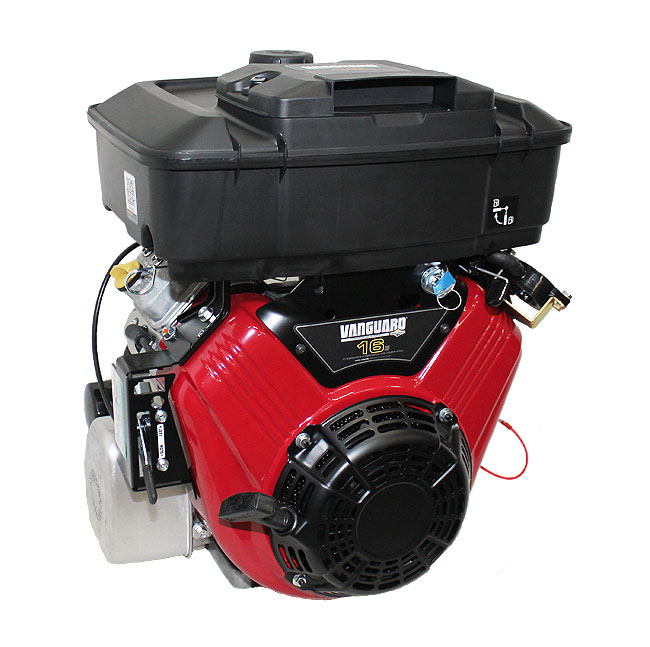

Briggs & Stratton Engine 305447-0615-F1 16 hp Horizontal Vanguard

Click to enlarge

Briggs & Stratton Engine 305447-0615-F1 16 hp Horizontal Vanguard

$1956.99$1999.99
Save: 2% off

Add Qty:

Description

305447-0615-F1, 16 hp, 479cc, Horizontal Shaft, Vanguard, Briggs & Stratton Engine, Free Shipping, No Tax

Crankshaft 1 in. x 2.90 in.

Replaces: 305447-0568-F1, 305447-0523-F1

Dura Bore cast iron cylinder sleeve for extended life
Float carburetor for consistent easy starting
Maintenance-free Magnetron electronic ignition for quick, dependable starts
Dual Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life
Full-pressure lubrication with spin-on oil filter assures controlled lubrication for extended component life
Overhead valve design (OHV) for cooler operation and longer valve life
12V gear drive starter and 16 Amp DC alternator
Recoil backup for emergency hand starts
Includes side mount muffler
9 Quart Top Mounted Fuel Tank
Engine Control & Ignition Key mounted on engine

Crankshaft Specifications

Service Part Number	692161
Type	General Purpose
Square PTO Key #1	1/4 Square
PTO Threads	3/8-24 UNF
PTO Thread Location	Internal
PTO Shaft Diameter (in)	1
PTO Shaft Diameter (mm)	25.4
PTO Shaft Length (in)	2.906
PTO Shaft Length (mm)	73.8

Engine Fuel	Gasoline
Configuration	Horizontal
Cylinders	Two
SKU	305447-0568-F1
Top No Load Speed	SET ENG NO-LOAD SPEED TO 3600 +/-100 RPM
Gross Horsepower*	16.00
Air Cleaner	AIR CLEANER, DUAL ELEMENT
Air Cleaner Cover	AIR CLNR COV COL 290 - SATIN BLACK
Chg System	ALTERNATOR, 16 AMP
Bearings	FM, 7.75", 6.50", & 5" DIA BOLT CIRCLE
Blower Housing	NON-DUCTED AIR FLOW
Bore Type	Sleevebore
Bore Size	2.68
Stroke	2.6
Casing Clamps	CASING CLAMP & SCREW, NO. 1 CYLINDER
Controls Groups	W/OUT SUPPRESS AFTERFIRE
Cylinder Head	CYLINDER, TWIN W/C.I.SLEEVE
Deflectors	DEFLECTORS, WITHOUT
Dipsticks	DIPSTICK, IN CRANKCASE
Oil Drain	OIL FILL IN VALVE COVER #2
Misc	FUEL HOSE, LOW PERM VERSION
Flywheel	FLYWHEEL, HEAVY EQUIP FOR ELEC START
Fuel System	FUEL SYSTEM, FUEL PUMP W/LOW PERM HOSE
Governor	MECHANICAL GOVERNOR
Exhaust	MUFFLER, LO-TONE INSTALLED
Spark Plug	SPARK PLUG, EMC "X"
Starting System	STARTER, REWIND POSITION - 9:00 O'CLOCK

Specs

Model: 305447-0615-F1
Shipping Weight: 102lbs
Manufactured by: Briggs-Stratton
