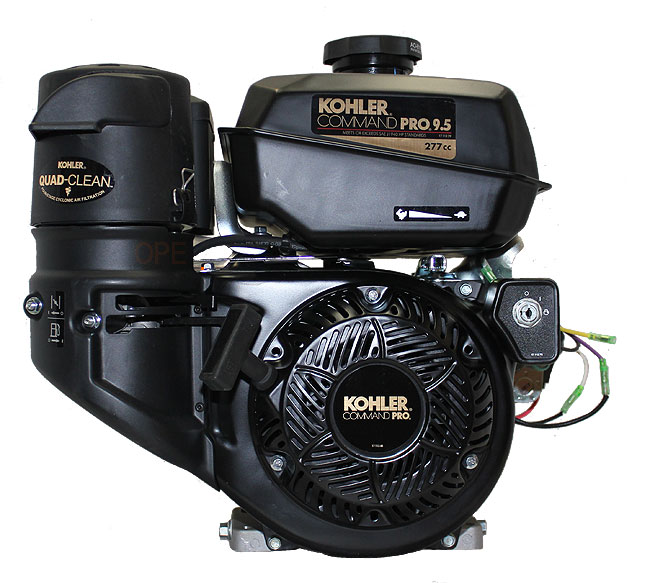

Kohler Engine CH395-3039 9.5 hp Command Pro 277cc 6:1 Gear Reduction

Always Free Shipping

Description

9.5 hp 277cc Kohler Engine CH395-3039 Command Pro, 1" Shaft, 6:1 Gear Reduction, Recoil And Electric Start, 3 amp charging, Free Shipping, No Tax.

This is what it takes to be a PRO. Performance-driven features like a heavy-duty air cleaner, forged-steel crankshaft, electronic ignition and cast-iron cylinder liner. Kohler Command Pro is the standard for professional-grade power and performance. Features include Quad-Clean all-season four-stage cyclonic air filter, effective engine protection for tough-and-dirty conditions. Large capacity fuel tank means more time working, less time filling. See more below.

Features

  • Search Our Kohler Parts Lookup Diagrams For Spec# CH395-3029
  • Overhead Valve Design
  • Dual Ball Bearings
  • Cast-Iron Cylinder Bore
  • Electronic Ignition
  • Quad-Clean 4-Stage Heavy-Duty Cyclonic Air Cleaner
  • No Tools Required All Season Air Cleaner
  • High-inertia Flywheel
  • Stellite Exhaust Valve
  • Water Trap to Separate Moisture in Fuel
  • 3 Fuel Filters: Filler Neck, In Tank, Carburetor Inlet
  • Dual Oil Fills and Drains
  • Steel-forged crankshaft
  • Automatic compression release
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Mechanical Governor
  • 7.4 Qt Fuel Tank
  • Carburetor Bowl Drain
  • Large metal fuel tank and chrome plated cap
  • Warm air intake system for cold weather operation
  • Indexable, Eazy Pull Retractable Starter
  • Electric 12 volt starter with key box and 3 amp charging
  • Oversized Muffler with Heat Shield and Spark Arrestor
  • Easy Access Choke and Shutoff
  • Manual Lever & Remote Throttle
  • E3 Carb Tier lll Compliant
  • 6:1 gear box
  • Output crankshaft – 1.0" (25.4mm) Diameter x 2.89" (73.3mm) Length, 0.25" (1/4", 6.36 mm) Keyway, Drilled & Tapped 7/16-20 UNF
  • PTO Face- 6.5 in (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71 in (18mm) Deep and 5 in (127mm) Diameter Bolt Circle (4 + 2 Holes) 5/16-24 UNF x 0.71 in (18mm) Deep
  • 3yr Warranty

Specs

Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block Model Command PRO® CH395 J1940 Power hp(kW) 1 9.5 (7.1) Displacement cu in (cc) 16.9 (277) Bore in (mm) 3.1 (78) Stroke in (mm) 2.3 (58) Peak Torque lbs. ft (Nm) 13.9 (18.8) Compression Ratio 8.5:1 Dry Weight lbs (kg) 61.5 (27.8) Oil Capacity U.S. quarts (L) 1.4 (1.3) Lubrication Splash Dimensions L x W x H in 15.9 x 16.8 x 16.7 Backpressure Limit 2 30 J1995 Power hp (kW) 3 9.1 (6.8) J1995 Rated Speed (RPM) 4000 * Measurements are based on a recoil-start engine. 1 Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation. 2 Inches of H20 @ 3600 RPM WOT 3 J1995 power and torque certified by 3rd Party Witness
  • Model: PACH395-3039
  • UPC: 650531917263
  • Shipping Weight: 65lbs
  • Manufactured by: Kohler
