CH620 - 18-19 hp 624- 674cc

Product 27/31

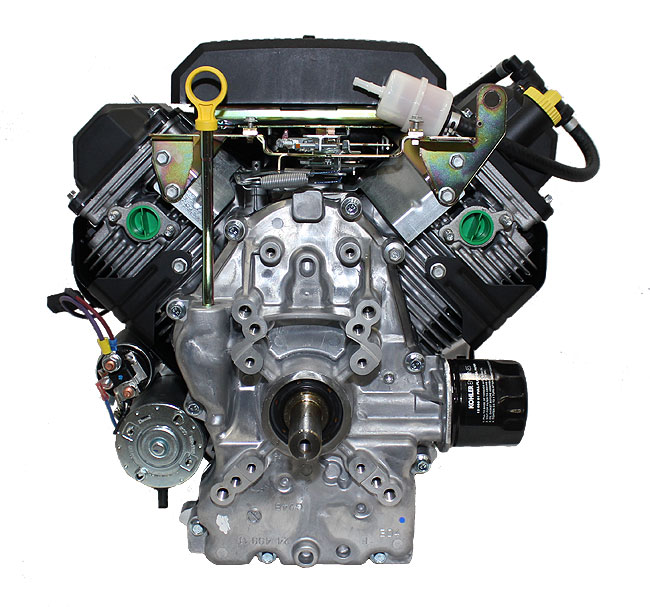

Kohler Engine CH620-3157 19 hp Command Pro 674cc 1 1/8 x 4 CS

Kohler Engine CH620-3157 19 hp Command Pro 674cc 1 1/8 x 4 CS

Click to enlarge

Kohler Engine CH620-3157 19 hp Command Pro 674cc 1 1/8 x 4 CS

Name: Kohler Engine CH620-3157 19 hp Command Pro 674cc 1 1/8 x 4 CS
Brand: Kohler
Price: 2160 USD
Availability: InStock

$2160.00

Add Qty:

Description

19 hp Kohler Command Pro, CH620-3157, 674cc, No Control Panel, 1 1/8" x 4" Crankshaft, Free Shipping, No Tax.

Replaces CH18 62500 / PA62500, CH620-3002, CH620-3103

Standard Features:

Overhead Valve Design
Hydraulic Valve Lifters
Electronic Ignition
Dual Element Air Cleaner
Closed Breather System
Stellite Exhaust Valves
Cast Iron Cylinder Liners
Full Pressure Lubrication
In-Line Fuel Filter
Easy Access Valve Cover Oil Fill
Oil Level Dipstick
Oil Filter
Dual Oil Drain
Oil Sentry (Switch Installed and Wired but Unconnected)
Variable Speed Governor
Fuel Shutdown Solenoid
Smart-Choke Carburetor
Mechanical Fuel Pump
12 Volt Solenoid Shift Starter
15 Amp Alternator, Regulated
Crankshaft - 1 1/8" (28.5 mm) Diameter x 4.0" (102 mm) PTO Length, 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot

Note: This has engine do NOT have Engine Controls-Key Switch, Throttle and Choke Controls it is setup for remote.

Specs

Model: PACH620-3157
UPC: 885612768254
Shipping Weight: 110lbs
Manufactured by: Kohler
