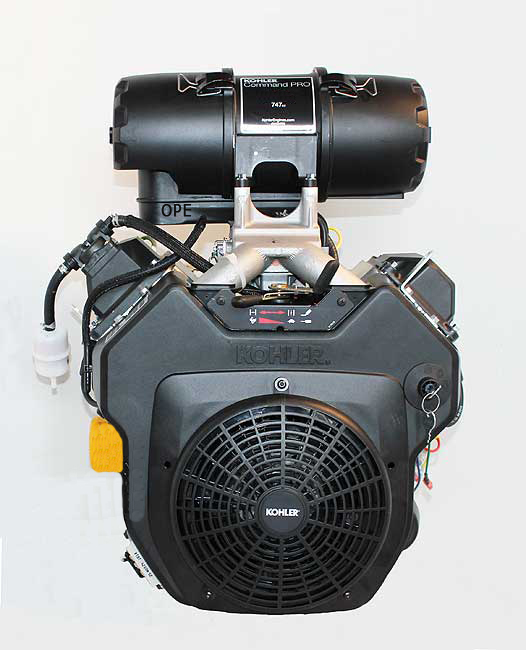

Kohler Engine CH742-3113 25 hp Command Pro 747cc Vermeer

 $2550.00$2747.28
Save: 7% off

Always Free Shipping
Add Qty:

Description

25 hp, Kohler Command Pro Engine 747cc, 1 7/16 Crankshaft CH742-3113, Vermeer, Free Shipping, No Tax.

Replaces Old Kohler Engine Spec # CH740-0061

Good replacement for CH730-0019

This engine comes with speed sensor that Vermeer uses for their auto sweep feature on some grinders.
If you do NOT use the auto sweep feature save some money by using one of the engines listed below.

CH732-3000 23.5 hpCH742-3100 25 hpCH752-3102 27 hp

Standard Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Heavy Duty Canister Air Cleaner System
  • Fixed Grass Screen Guard
  • Cast-Iron Cylinder Liners
  • PTO Sleeve Bearing (Side Load)
  • Electronic Ignition
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Large Capacity Oil Filter
  • Dual Oil Drain
  • Oil Sentry (Switch Installed and Wired but Unconnected)
  • Engine-Mounted Oil Cooler, Radiator Style
  • Variable Speed Governor
  • High Performance Twin Barrel Carburetor
  • Fuel Shutdown Solenoid
  • Smart-Choke Carburetor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • Speed Sensor
  • 12 Volt Solenoid Shift Starter
  • 20 Amp Alternator, Regulated
  • Crankshaft-1.437 inch (36 mm) Diameter x 4.46 inch (113 mm) PTO Length, 0.375 inch (9.5 mm) Keyway, Drilled and Tapped 1.5 inch (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625 inch (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67inch  (17 mm) Deep, 7.75 inch  (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 inch (21 mm) Deep
  • 7 inch (178 mm) Diameter Pilot
  • Engine Mounted Controls- Key Switch, Throttle and Choke Controls
  • E16 CARB

See Exhaust Systems
2478610S PTO Canister Muffler Kit-Center Outlet
2478611S PTO Canister Muffler Kit-Filter Side Outlet
2478612S PTO Canister Muffler Kit-Starter Side Outlet
2478619S Side Mount Muffler Kit-Starter Side
2478620S Side Mount Muffler Kit-Filter Side
2478621S Raised Body PTO Canister Kit-Filter Side Outlet
2478622S Raised Body PTO Canister Kit-Starter Side Outlet

Specs

  • Model: PACH742-3113
  • UPC: 885612239426
  • Shipping Weight: 125lbs
  • Manufactured by: Kohler
