Kohler Engine CH940-3011 32.5 hp Command Pro 999cc Lpac 1 1/8 Crank

 $3799.95$3993.91
Save: 5% off

Always Free Shipping
Add Qty:

Description

32.5 hp 999cc Kohler Engine CH940-3002 Command Pro Basic LPAC 1 1/8 Crankshaft, Free Shipping, No Tax.

Replaces CH940-0012, CH940-2012

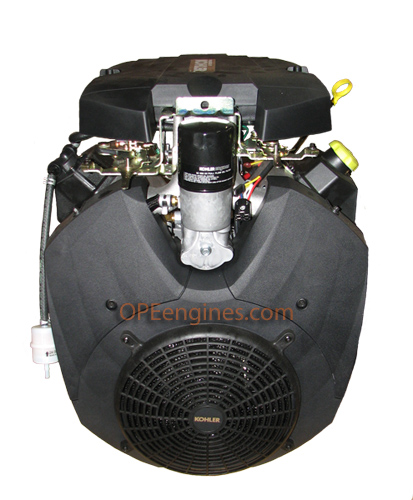

Engine is pictured with optional engine control mounted. (Order controls separately)

Standard Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Nylon Cam Gear
  • Cast-iron Cylinder Liners
  • Stellite Exhaust Valves
  • Flywheel and PTO Sleeve Bearing
  • Electronic Ignition
  • High-Performance Spark Plugs RFI and EMC Compliant
  • Full Pressure Lubrication
  • Oil Cooler
  • Top Mounted Spin On Large Capacity Oil Filter
  • Large Dual Oil Drains
  • Low Profile Air Cleaner System
  • High-efficiency Fan and Screen
  • Fixed Grass Screen and Guard
  • Blower Housing with Removable Cylinder Access Covers
  • Easy Access Valve Covers
  • Oil Sentry
  • Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side)
  • Two Barrel Carburetor
  • Fuel Shut Down Solenoid
  • Smart Choke Carburetor
  • Mechanical Fuel Pump
  • 25 Amp Alternator
  • Hardened Crank Shaft Journals
  • User-friendly Maintenance
  • 3 Year Limited Warranty
  • Remote Controls (for front mounted controls and key order kit below)
  • Crankshaft-1.125 in. (1 1/8 in.)(28.5 mm) Diameter x 4 in. (101.6 mm) PTO Length, 0.375 in. (9.5 mm) Keyway, Drilled and Tapped 1.5 in. (38 mm) Deep, 7/16-20 UNF
  • PTO Face-5.625 in. (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 in (17 mm) Deep, 7.75 in. (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 in. (21 mm) Deep
  • 7 in. (178 mm) Diameter Pilot
Model Command PRO CH940
HP (kW) [1] 32.5(24.2)
Displacement (cc) 61 (999)
Bore in (mm) 3.5 (90)
Stroke in (mm) 3.1 (78.5)
Gross Torque ft lbs (Nm) [1] 53.5 (72.5)
Compression Ratio 8.8:1
Dry Weight lbs (kg) 132 (59)
Oil Capacity US qts (L) 2.1 (2)
Lubrication Full pressure w/full-flow filter
Dimensions LxWxH (in)* 15.3 x 19.0 x 27.5
Backpressure Limit [2] 40
Certified Power HP (kW) [3] 31.84 (23.74)
Certified RPM 3600
Emissions Compliance
  • EPA Phase III

Optional Accessories:

6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws)

6278601S Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
6278602S Exhaust Muffler Kit Starter Side Outlet (Discharges to the right if facing the front of engine).
6278603S Exhaust Muffler Kit Opposite Starter Side (Discharges to the left if facing the front of engine).

Specs

  • Model: PACH940-3011
  • UPC: 885612403940
  • Shipping Weight: 165lbs
  • Manufactured by: Kohler
