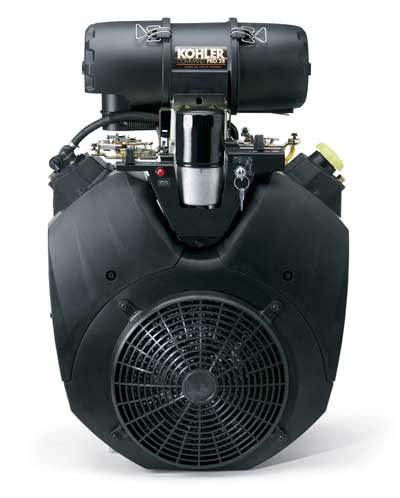

Kohler Engine CH980-3000 35 hp Command Pro 999cc Hdac 1 7/16 Crank


Always Free Shipping
Add Qty:


35 hp, Kohler Engine Command Pro, CH980-3000, 999cc, Heavy Duty Air Cleaner (HDAC), 1 7/16 x 4 1/2 Crankshaft, Free Shipping, No Tax, Replaces Old Kohler Spec# CH980-0002, CH980-2002.

Free Kohler Service Manual

Standard Features:

  • Crankshaft-1.437 in (1 7/16 in)(36 mm) Diameter x 4.453 in (113 mm) PTO Length, 0.375 in (9.5 mm) Keyway, Drilled and Tapped 1.5 in (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625 in (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 in (17 mm) Deep, 7.75 in (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 in (21 mm) Deep
  • 7 in (178 mm) Diameter Pilot
  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Nylon Cam Gear
  • Cast-iron Cylinder Liners
  • Stellite Exhaust Valves
  • Flywheel and PTO Sleeve Bearing
  • Electronic Ignition
  • High-Performance Spark Plugs RFI and EMC Compliant
  • Full Pressure Lubrication
  • Top Mounted Spin On Large Capacity Oil Filter
  • Large Dual Oil Drains
  • Heavy-Duty Canister Air Cleaner System (HDAC)
  • High-efficiency Fan and Screen
  • Fixed Grass Screen and Guard
  • Blower Housing with Removable Cylinder Access Covers
  • Easy Access Valve Covers
  • Oil Sentry
  • Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side).
  • Two Barrel Carburetor
  • Fuel Shut Down Solenoid
  • Smart Choke Carburetor
  • Mechanical Fuel Pump
  • 25 Amp Alternator
  • Hardened Crank Shaft Journals
  • User-friendly Maintenance
  • 3 year Warranty
  • Remote Controls (for front mounted controls and key order kit below)

Optional Accessories:

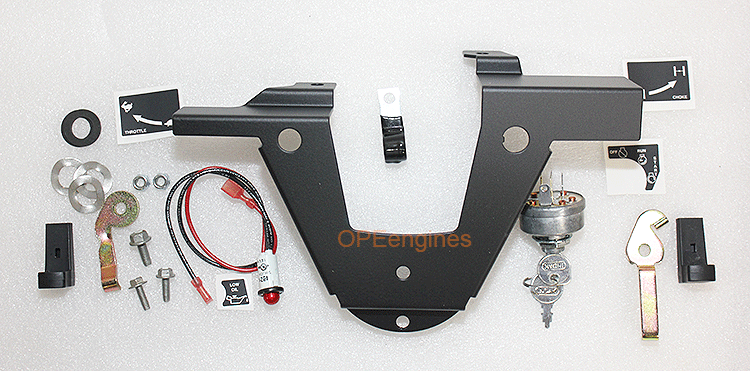

6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws)

6278601S Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
6278602S Exhaust Muffler Kit Starter Side Outlet (Discharges to the right if facing the front of engine).
6278603S Exhaust Muffler Kit Opposite Starter Side (Discharges to the left if facing the front of engine).


  • Model: PACH980-3000
  • UPC: 885612418029
  • Shipping Weight: 162lbs
  • Manufactured by: Kohler
