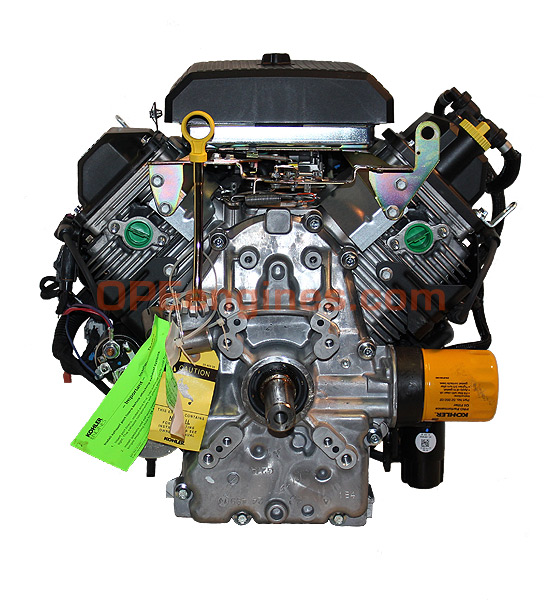

Kohler Engine ECH749-3130 26.5 hp Command Pro 747cc Efi 1 7/16 LPAC

$3613.00

Always Free Shipping
Add Qty:

Description

26.5 hp, Kohler Command Pro Engine, ECH749-3130, Efi, 747cc, 1 7/16 x 4 Crankshaft, Low Profile Air-Cleaner (LPAC), Free Shipping No Tax.

Replaces ECH749-3001

E16 CARB approved

Standard Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Cast-Iron Cylinder Liners
  • PTO Sleeve Bearing (Side Load)
  • Electronic Ignition
  • Large Capacity Dual Element Air Cleaner LPAC
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Oil Level Dipstick-Yellow
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry
  • Oil Cooler
  • Variable Speed Governor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • 12 Volt Solenoid Shift Starter
  • Fixed Grass Screen Guard
  • 25 Amp Alternator, Regulated
  • 3/16" Evaporative emissions connection
  • Engine Controls-Key Switch and Throttle Control
  • Crankshaft 24014202-S, 1.437"(36.5 mm) Diameter x 4.46" (113 mm) PTO Length 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
  • PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
  • 7" (178 mm) Diameter Pilot
  • 3 Year Warranty

Specs

  • Model: PAECH749-3130
  • UPC: 885612373144
  • Shipping Weight: 120lbs
  • Manufactured by: Kohler
