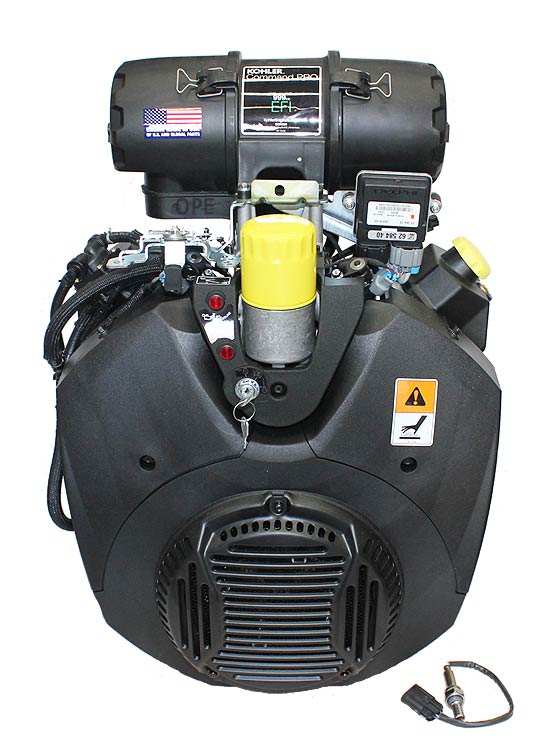

Kohler Engine ECH940-3000 35 hp Command Pro Efi 999cc HDAC 1 7/16

$5306.06

Always Free Shipping
Add Qty:

Description

35 hp, Kohler Command Pro Efi Engine, ECH940-3000, 999cc, HDAC 1 7/16"

Standard Features:

  • Crankshaft-1.437", 1 7/16" (36 mm) Diameter x 4.46" (113 mm) PTO Length, 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
  • 7" (178 mm) Diameter Pilot
  • 25 Amp Alternator, Regulated
  • Engine Controls - Key Switch and Throttle Control
  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Nylon Cam Gear
  • Cast-Iron Cylinder Liners
  • Stellite Exhaust Valves
  • Flywheel and PTO Sleeve Bearings
  • Electronic Ignition
  • High Performance Spark Plugs RFI and EMC Compliant
  • Full Pressure Lubrication
  • Top Mount Spin-On Large Capacity Oil Filter
  • Large Dual Oil Drains
  • Heavy Duty Canister Air Cleaner System HDAC
  • High Efficiency Grass Screen and Fan
  • Fixed Grass Screen Guard
  • Blower Housing with Removable Cylinder Access Covers
  • Oil Sentry (Switch Installed but Unconnected)
  • Variable Speed Governor
  • Front Mounted Remote Controls (for boden wire connection)
  • Closed Breather System
  • Mechanical Fuel Pump
  • Large Capacity In-Line Fuel Filter
  • 12 Volt Solenoid Shift Starter
  • 3/16” Evaporative emissions connection
Model Command PRO EFI ECH940
HP (kW) 1 35(26.1)
Displacement (cc) 61 (999)
Bore in (mm) 3.5 (90)
Stroke in (mm) 3.1 (78.5)
Gross Torque ft lbs (Nm) 1 56 (75.9)
Compression Ratio 8.8:1
Dry Weight lbs (kg) 132 (60)
Oil Capacity US qts (L) 2 (1.9)
Lubrication Full pressure w/full-flow filter
Dimensions LxWxH (in)* 15.8 x 19.1 x 23.6
Backpressure Limit 2 40
Certified RPM 3600
Engine Type Commercial



Specs

  • Model: PAECH940-3000
  • UPC: 885612372574
  • Shipping Weight: 120lbs
  • Manufactured by: Kohler
