CV1000 - 37-40 hp 999cc

Product 1/2

Kohler Engine CV1000-0002 38 hp Command Pro 999cc NLA

Click to enlarge

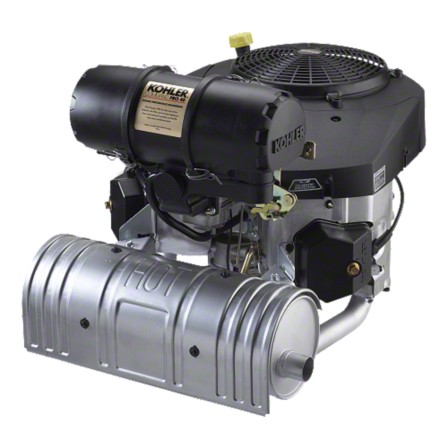

Kohler Engine CV1000-0002 38 hp Command Pro 999cc NLA

38 hp, Kohler Engine Command Pro, CV1000-0002, 999cc

No Longer Available

Overhead Valve Design
Hydraulic Valve Lifters
Nylon Cam Gear
Cast-iron Cylinder Liners
Stellite Exhaust Valves
Flywheel and PTO Sleeve Bearing
Electronic Ignition
High-Performance Spark Plugs RFI and EMC Compliant
Full Pressure Lubrication
Top Mounted Spin On Large Capacity Oil Filter
Large Dual Oil Drains
Heavy-Duty Canister Air Cleaner System
High-efficiency Fan and Screen
Fixed Grass Screen and Guard
Blower Housing with Removable Cylinder Access Covers
Easy Access Valve Covers
Oil Sentry
Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side)
Two Barrel Carburetor
Fuel Shut Down Solenoid
Smart Choke Carburetor
Pulse Fuel Pump
20/25 Amp Alternator
Hardened Crank Shaft Journals
User-friendly Maintenance
Includes muffler

Crankshaft- 1.125" (1 1/8) (28.5 mm) Diameter x 3.16" (84 mm) PTO Length, 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF

Max Power @3600 RPM hp (kW) ¹	40 (29.8)
Displacement cu in (cc)	61 (999)
Bore in (mm)	3.5 (90)
Stroke in (mm)	3.1 (78.5)
Peak Torque @ Maximum lbs ft (Nm)	61.3 (83.2)
Compression Ratio	8.8:1
Dry Weight lbs (kg)	127 (57)
Oil Capacity U.S. quarts (L)	3.1 (2.9)
Lubrication	Full pressure w/full-flow filter
Dimensions L x W x H in	25.2 x 19.0 x 18.5

Model: PACV1000-0002
Manufactured by: Kohler
