CV680 - 22.5-23 hp 674cc

Product 2/20

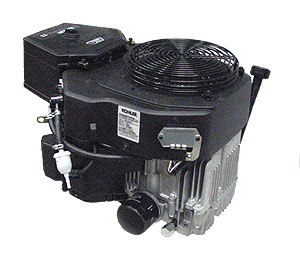

Kohler Engine CV680-3002 22.5 hp Command Pro 674cc Basic

Click to enlarge

Kohler Engine CV680-3002 22.5 hp Command Pro 674cc Basic

23HP KOHLER COMMAND PRO CV680S BASIC CV680-3002

Replaces 75550 / PA75550

Discontinued, No Longer Available

Standard Features:
• Overhead Valve Design
• Hydraulic Valve Lifters
• Electronic Ignition
• Cast-Iron Cylinder Liners
• PTO Sleeve Bearing (Side Load)
• Large Capacity Dual Element Air Cleaner
• Closed Breather System
• High Efficiency Grass Screen and Fan
• Stellite® Exhaust Valves
• Full Pressure Lubrication
• Large Capacity In-Line Fuel Filter
• Easy Access Fill Tube and Dipstick-Yellow
• Large Capacity Oil Filter W/ Oil Cooler
• Dual Oil Drain
• Oil Sentry™ (Switch Installed and Wired but Unconnected)
• Variable Speed Governor
• High Performance Accelerator Pump Carburetor
• Fuel Shutdown Solenoid
• Smart-Choke™ Carburetor
• Pulse Fuel Pump
• High Performance Spark Plugs
• 12 Volt Solenoid Shift Starter
• 15 Amp Alternator, Regulated
• Wiring Harness 2417640

Muffler Not Included

• Crankshaft 2401442 1" (1") (25.375 mm) Diameter x 3 5/32" (3.16", 80 mm) PTO Length, 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
• PTO Face-10" (254 mm) Diameter, 4 Through Holes, 0.36" (9 mm) Diameter

Model: PACV680-3002
Manufactured by: Kohler
