CV680 - 22.5-23 hp 674cc

Product 6/20

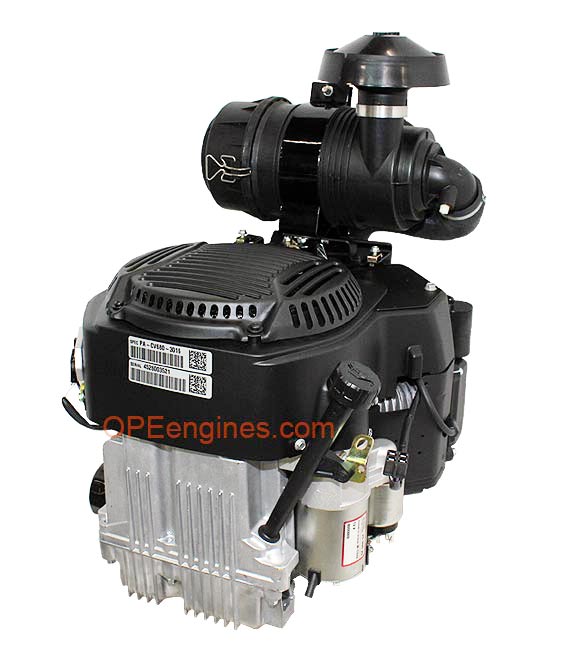

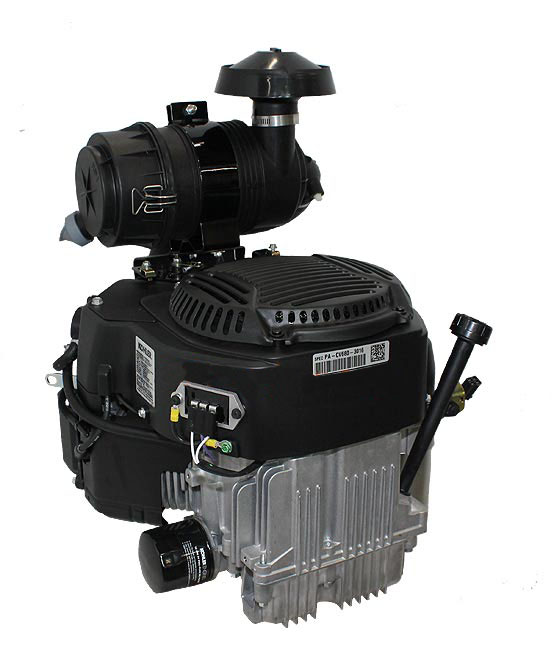

Kohler Engine CV680-3018 22.5 hp Command Pro 674cc Toro

Kohler Engine CV680-3018 22.5 hp Command Pro 674cc Toro

Click to enlarge

Kohler Engine CV680-3018 22.5 hp Command Pro 674cc Toro

Name: Kohler Engine CV680-3018 22.5 hp Command Pro 674cc Toro
Brand: Kohler
Price: 2630 USD
Availability: InStock

$2630.00

Add Qty:

Description

23 hp Kohler Command Pro 674cc Engine Toro

Standard Features:

Overhead Valve Design
Hydraulic Valve Lifters
Electronic Ignition
Cast-Iron Cylinder Liners
Large Capacity Dual Element Air Cleaner
Closed Breather System
High Efficiency Grass Screen and Fan
Stellite Exhaust Valves
Full Pressure Lubrication
Large Capacity In-Line Fuel Filter
Easy Access Fill Tube and Dipstick-Yellow
Large Capacity Oil Filter
Dual Oil Drain
Top Mounted Controls
Variable Speed Governor
Fuel Shutdown Solenoid
Smart-Choke Carburetor
Pulse Fuel Pump
High Performance Spark Plugs
12 Volt Solenoid Shift Starter
15 Amp Alternator, Regulated
Wiring Harness 24176178 (24176137)
Note: Muffler not included
Crankshaft 24014371(2401472), 1 1/8" (1.124, 28.5 mm) Diameter x 4.3" (4.457", 113.2 mm) PTO Length, 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UN
PTO Face-10" (254 mm) Diameter, 4 Through Holes, 0.36" (9 mm) Diameter

Specs

Model: PACV680-3018
UPC: 650531797346
Shipping Weight: 120lbs
Manufactured by: Kohler
