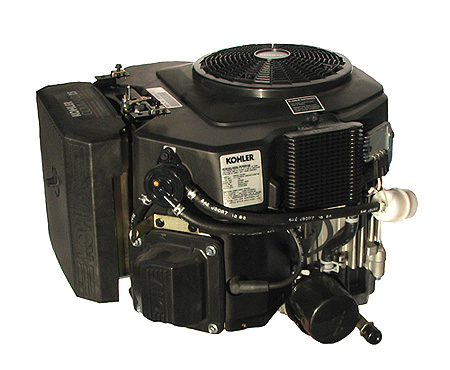

Kohler Engine CV740-3129 25 hp Command Pro 725cc Simplicity

Kohler Engine CV740-3129 25 hp Command Pro 725cc Simplicity

Click to enlarge

Kohler Engine CV740-3129 25 hp Command Pro 725cc Simplicity

Name: Kohler Engine CV740-3129 25 hp Command Pro 725cc Simplicity
Brand: Kohler
Availability: OutOfStock

Description

****Long Block or Components Only *****
CV740-3129 25 hp Kohler Command Pro 725cc Simplicity Prestige

Replaces CV740-0040, CV740-3111

Features Include:

Overhead Valve Design
Hydraulic Valve Lifters
Electronic Ignition
Cast-Iron Cylinder Liners
Dual Element Air Cleaner
Closed Breather System
High Efficiency Grass Screen and Fan
Stellite Exhaust Valves
Full Pressure Lubrication
Engine-Mounted Oil Cooler, Radiator Style
Large Capacity In-Line Fuel Filter
Easy Access Fill Tube and Dipstick-Yellow
Oil Filter
Oil Sentry (Switch Installed and Wired but Unconnected)
Variable Speed Governor
Top Mounted Controls
High Performance Accelerator Pump Carburetor
Fuel Shutdown Solenoid
Smart-Choke Carburetor
Pulse Fuel Pump
High Performance Spark Plugs
12 Volt Solenoid Shift Starter
15 Amp Alternator, Regulated
Wiring Harness 2417681
No Muffler
Crankshaft 24014364 (2401442) 1 in. (25.375 mm) Diameter x 3 5/32 in. (3.16", 80 mm) PTO Length, 0.25 in. (6 mm) Keyway, Drilled and Tapped 1.5 in. (38 mm) Deep, 7/16-20 UNF
PTO Face 10 in. (254 mm) Diameter, 4 Through Holes, 0.36 in. (9 mm) Diameter

Specs

Model: PACV740-3129
UPC: 650531991157
Shipping Weight: 106lbs
Manufactured by: Kohler
