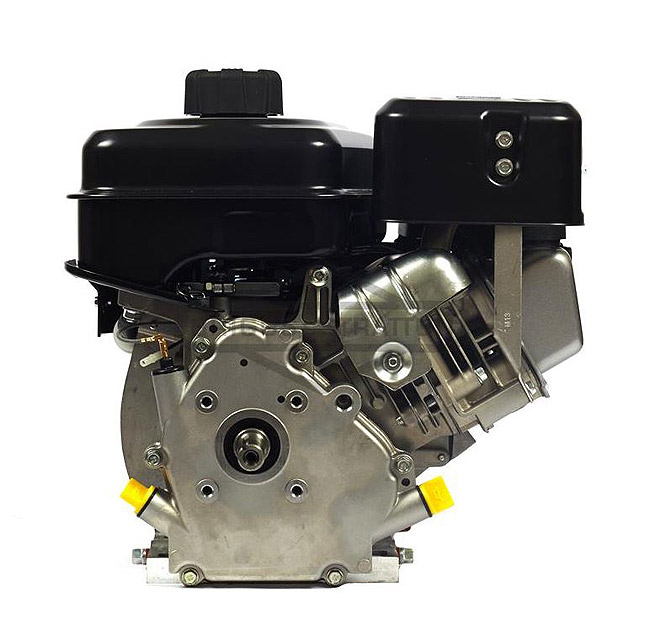

6.5 hp Briggs & Stratton Vanguard Engine 12V352-0015-F1 Gear Reduction

$730.00$780.00
Save: 6% off

Add Qty:

Description

6.5 hp, 203cc, Briggs & Stratton Commercial Vanguard Horizontal Engine, 12V352-0015-F1, Gear Reduction CCW, Free Shipping, No Tax.

FEATURES:

Output shaft 3/4" x 1 13/16", Tapped 5/16-24, 3/4" keyway.
TransportGuard fuel/ignition shut off system protects the engine from oil dilution during transport.
Carburetor includes additional fuel passages for reliable starting and smooth operation at a wide range of loads.
Mechanical Governor
Buyer protection package provides 3 year commercial limited warranty.
Dura-Bore cast iron cylinder sleeve for extended life.
PTO and Mag Ball Bearing
Overhead valve design (OHV) for cooler operation and longer valve life
Dual-Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life.
Equipped with Run Sense low oil sensor.
6:1 Gear Reduction CCW
Base to center of crankshaft 4.17".

Bore 2.68 in. (62.00 mm)
Stroke 2.20 in. (55.88 mm)
Oil Capacity 22 fl. oz. (0.65 L)


PTO Diameter	3/4 in.
Drilled Tapped	5/16-24 UNF
Keyway	3/16-Str.
Length	1 13/16 in.
Starter Position	10:30
Controls	R/AG/MF
Fuel Tank	3.3
Top Governor Speed	3600
Low Oil Sensor	Yes
Manual Choke	Yes

Specs

Model: 12V352-0015-F1
Shipping Weight: 47lbs
Manufactured by: Briggs-Stratton
