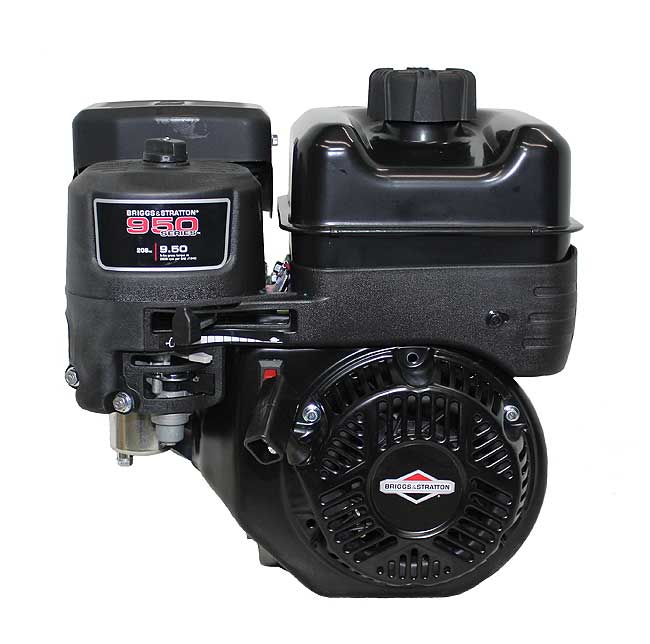

Briggs & Stratton Engine 130G32-0022-F1 9.50 Gross Torque 208cc 3/4 in

Description

9.5 Power Ft lbs of Torque, 130G32-0022-F1 Briggs & Stratton Engine, 208cc, With Low Oil Guard, Free Shipping, No Tax, 1 to 3 Day Delivery.

Replaces: 126312-0023-E2, 12S432-0036-F8, 12T102-0023-F8, 12T132-0036-F8, 130202-1515-01

*** Note If replacing a L Head this may not be a good option ****

If Rplacing a 135202-0237-01 than you will also need to swap the crank to make it work, Crank number is 592959 needs to be ordered in addition to the replacement to make it work

Good replacement for some Troy Bilt Tiller Pony and Horse models.

Crankshaft: 3/4 inch Diameter x 2-27/64 inch PTO Length, 3/16 inch keyway tapped 5/16-24
Dura-Bore cast iron cylinder sleeve for extended life
Maintenance-free Magnetron electronic ignition for quick, dependable starts
Overhead valve design (OHV) for cooler operation and longer valve life
Float feed carburetor delivers consistent one pull start
PTO Ball Bearing
Dual-Clean air cleaner pleated paper filet with a foam pre-cleaner ensures maximum protection for extended engine life.
Engine Type: OHV 950 Series
Displacement 208cc
Torque: 9.50 ft./lbs.
Bore x Stroke: 2.75 inch x 2.12 inch
Start Type: Recoil
Cooling System: Air Cooled
Air Cleaner Type: Dual Element
Oil Capacity: 20 oz
Low Oil Guard
Ignition System: Electronic
Fuel Type: Gasoline
Muffler Included: Yes
Dimensions: 10 1/4 inch L x 14 2/5 inch W x 14 /13/16 inch H

Specs

Engine Fuel	Gasoline
Configuration	Horizontal
Cylinders	One
SKU	130G32-0022-F1
Top No Load Speed	SET ENG NO-LOAD SPEED TO 3300 +/-100 RPM
Air Cleaner	AIR CLEANER, DUAL ELEMENT OVAL
Bearings	BEARINGS, BALL MAG
Bore Type	Sleevebore
Casing Clamps	CASING CLAMP & SCREW INSTALLED
Controls Groups	CONTROL GROUP 5, UTILITY
Cylinder Head	CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors	DEFLECTORS, WITHOUT
Dipsticks	DIPSTICK, LOW MOUNT, DUAL
Oil Drain	OIL DRAIN, DUAL
Misc	FUEL SHUT OFF VALVE, INSTALLED
Flywheel	FLYWHEEL, HVY, CAST IRON
Governor	MECHANICAL GOVERNOR
Exhaust	MUFFLER, LO-TONE, TUBE OUTLET W/ STAMP GUARD INSTA
Spark Plug	SPARK PLUG, EMC "Q"
Starting System	STARTER, REWIND POSITION - 10:00 O'CLOCK

Model: 130G32-0022-F1
UPC: 024847926859
Shipping Weight: 35lbs
Manufactured by: Briggs-Stratton

Manuals & Warranty

Model Series	130G
Power Lbs/Ft of Torque	9.5
Engine Series	950
Displacement (cc)	208
Oil Capacity (oz)	20
Valve Configuration	OHV
Flywheel Torque (lbs/ft)	65
Governor Arm Torque (lbs/in)	40
Carb Mount (lbs/in)	40
Plug Gap (in)	0.03
Intake Valve (in)	.004-.006
Exhaust Valve (in)	.006-.008
Idle Speed (rpm)	1750
Air Gap (in)	.010-.014
Flywheel Puller Part	19203
Flywheel Holder Part	19433
Connecting Rod Torque	125
Sump Torque	210
Head Torque	210

Common Parts

590601	Filter-A/C Cartridge
590602	Filter-Pre Cleaner
591445	Gasket-Cylinder Head
591770	Kit-Carburetor Overhaul
592861	Muffler
691043	Plug-Spark (EMS)
491055S	Plug-Spark (Resistor)
