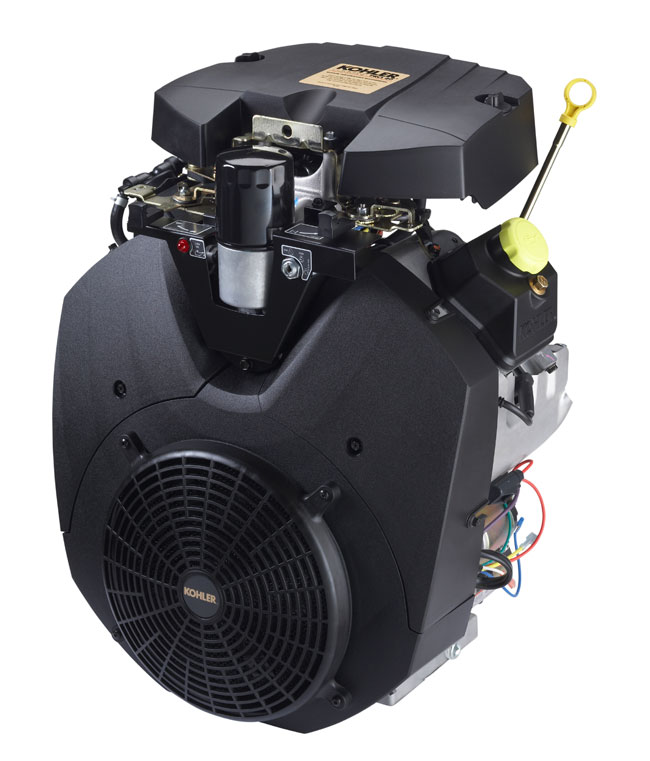

Kohler Engine CH1000-3001 37 hp Command Pro 999cc Mud Boat

Name: Kohler Engine CH1000-3001 37 hp Command Pro 999cc Mud Boat
Brand: Kohler
Price: 5577 USD
Availability: InStock

$5577.00$5677.00
Save: 2% off

Add Qty:

Description

37 hp, 999cc, Kohler Command Pro Engine, CH1000-3001, Mud Boat, With Low Profile Air Cleaner (LPAC), 1 1/8" x 4"crankshaft, Free Shipping, No Tax.

Replaces Old Kohler Spec# CH1000-0012,CH1000-2012.

Standard Features:

Overhead Valve Design
Hydraulic Valve Lifters
Metal Cam
Cast-iron Cylinder Liners
Stellite Exhaust Valves
Flywheel and PTO Sleeve Bearing
Electronic Ignition
High-Performance Spark Plugs RFI and EMC Compliant
Full Pressure Lubrication
Top Mounted Spin On Large Capacity Oil Filter
Large Dual Oil Drains
Flat Air Cleaner System
High-efficiency Fan and Screen
Fixed Grass Screen and Guard
Blower Housing with Removable Cylinder Access Covers
Easy Access Valve Covers
Oil Sentry
Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side)
Two Barrel Carburetor
Fuel Shut Down Solenoid
Smart Choke Carburetor
Mechanical Fuel Pump
25 Amp Alternator
Hardened Crank Shaft Journals
User-friendly Maintenance
3 Year Limited Warranty

Included also:
Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
Choke control & key

Crankshaft 6201478 1.125" (1 1/8")(28.5 mm) Diameter x 4" (102 mm) PTO Length, 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
7" (178 mm) Diameter Pilot

MAX. POWER @ 3600 RPM hp (kW) 37 (27.5)
DISPLACEMENT cu. in. (cc) 61 (999)
BORE in. (mm) 3.5 (90)
STROKE in. (mm) 3.1 (78.5)
PEAK TORQUE @ MAXIMUM 57.4 ft lbs. (77.8 Nm) @ 3200
COMPRESSION RATIO 8.8:1
DRY WEIGHT lbs. (kg) 132 (59)
OIL CAPACITY U.S. quarts (liters) 2.9 (2.75)
DIMENSIONS L x W x H in. 15.3 x 19.0 x 27.5
