Kohler Engine CH1000-3002 37 hp Command Pro 999cc Lpac 1 7/16 CS

 $4501.00$4840.00
Save: 7% off

Always Free Shipping
Add Qty:

Description

37 hp 999cc Kohler Engine CH1000-3002 Command Pro Basic with Low Profile Air Cleaner (LPAC) 1 7/16 in. crankshaft, Free Shipping, No Tax.

Replaces CH1000-2023.

LPAC Low Profile Air Cleaner.

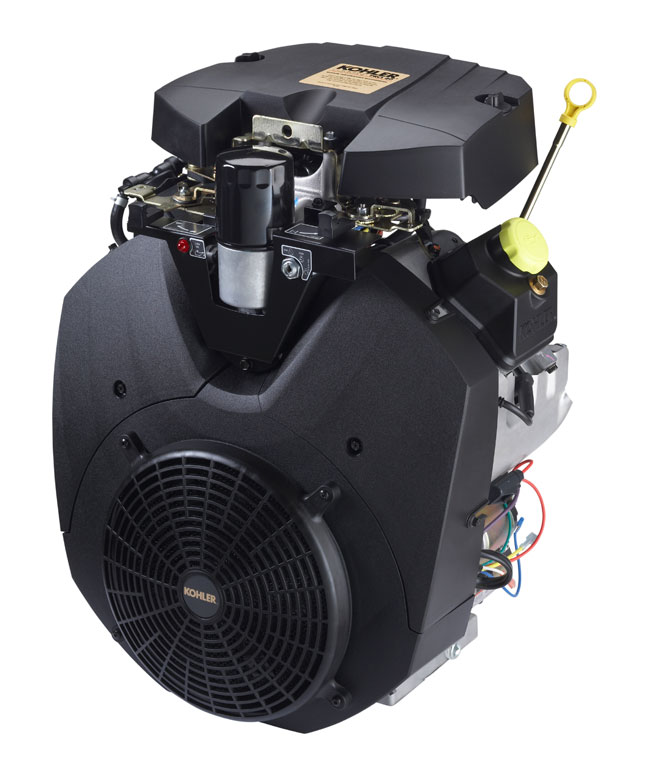

Engine is pictured with optional engine control mounted. (Order controls separately).
6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws).

Standard Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Metal Cam
  • Cast-iron Cylinder Liners
  • Stellite Exhaust Valves
  • Flywheel and PTO Sleeve Bearing
  • Electronic Ignition
  • High-Performance Spark Plugs RFI and EMC Compliant
  • Full Pressure Lubrication
  • Top Mounted Spin On Large Capacity Oil Filter
  • Large Dual Oil Drains
  • Low Profile Air Cleaner System (LPAC)
  • High-efficiency Fan and Screen
  • Fixed Grass Screen and Guard
  • Blower Housing with Removable Cylinder Access Covers
  • Easy Access Valve Covers
  • Oil Sentry
  • Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side)
  • Two Barrel Carburetor
  • Fuel Shut Down Solenoid
  • Smart Choke Carburetor
  • Mechanical Fuel Pump
  • 25 Amp Alternator
  • Hardened Crank Shaft Journals
  • User-friendly Maintenance
  • 3 Year Limited Warranty
  • Does NOT include: Choke control & key switch
  • Crankshaft-1.437" (1 7/16")(36 mm) Diameter x 4.453" (113 mm) PTO Length, 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
  • 7" (178 mm) Diameter Pilot

MAX. POWER @ 3600 RPM hp (kW) 37 (27.5)
DISPLACEMENT cu. in. (cc) 61 (999)
BORE in. (mm) 3.5 (90)
STROKE in. (mm) 3.1 (78.5)
PEAK TORQUE @ MAXIMUM 57.4 ft lbs. (77.8 Nm) @ 3200
COMPRESSION RATIO 8.8:1
DRY WEIGHT lbs. (kg) 132 (59)
OIL CAPACITY U.S. quarts (liters) 2.9 (2.75)
DIMENSIONS L x W x H in. 15.3 x 19.0 x 27.5

Optional Accessories:

6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws)

6278601S Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
6278602S Exhaust Muffler Kit Starter Side Outlet (Discharges to the right if facing the front of engine).
6278603S Exhaust Muffler Kit Opposite Starter Side (Discharges to the left if facing the front of engine).

Specs

  • Model: PACH1000-3002
  • UPC: 885612420930
  • Shipping Weight: 168lbs
  • Manufactured by: Kohler
