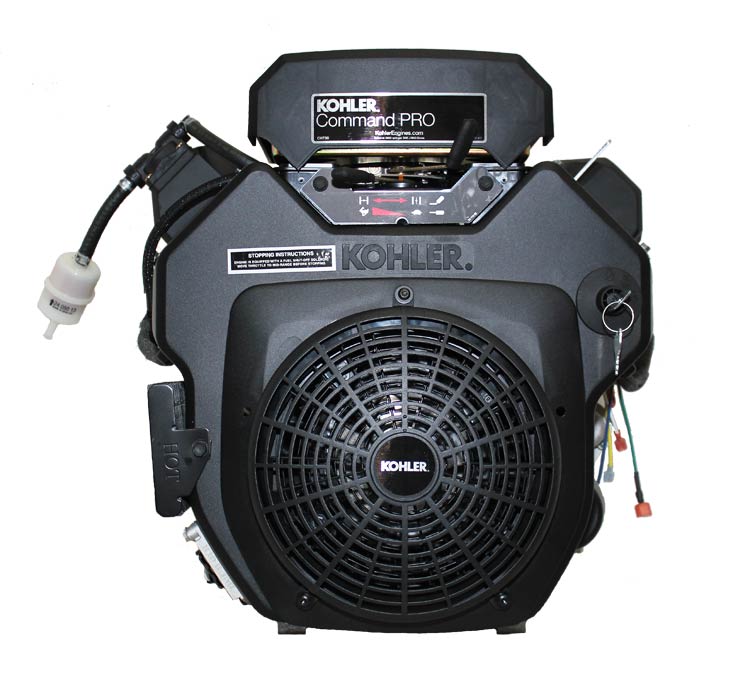

Kohler Engine CH730-3000 23.5 hp Command Pro 725cc 1 1/8 Crankshaft

$2278.96

Always Free Shipping
Add Qty:

Description

23.5 hp, Kohler Command Pro Engine, 725cc, CH730-3000, 1 1/8" x 4" Crankshaft, Free Shipping, No Tax.

Replaces Old Kohler Engine Spec# 68503, 68591, 68518, CH730-0039, CH730-3201, PSCH730-0039
Good replacement for CH730-3300

This engine was rate as 25 hp but with new rating system it is now rated as 23.5 hp, It's still a 725cc engine.

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Engine Mounted Oil Cooler
  • Cast-Iron Cylinder Liners
  • PTO Sleeve Bearing (Side Load)
  • Electronic Ignition
  • Large Capacity Dual Element Air Cleaner
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Oil Level Dipstick-Yellow
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry (Switch Installed and Wired but Unconnected)
  • Variable Speed Governor
  • High Performance Accelerator Pump Carburetor
  • Fuel Shutdown Solenoid, Smart-Choke Carburetor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • 12 Volt Solenoid Shift Starter
  • 20 Amp Alternator, Regulated
  • Fixed Grass Screen Guard
  • Engine Controls- Key Switch, Throttle and Choke Controls
  • Crankshaft- 2401402, 24014345, 1.125 inch (1 1/8 inch)(28.575 mm) Diameter x 4.0 inch (101.5 mm) PTO Length, 0.25 inch (1/4) (9.5 mm) Keyway, Drilled and Tapped 1.5 inch (38 mm) Deep, 7/16-20 UNF
  • PTO Face-5.625 inch (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 inch  (17 mm) Deep, 7.75 inch (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 inch (21 mm) Deep
  • 7 inch (178 mm) Diameter Pilot
  • Old UPC 650531985101 CH730-3201

See Exhaust Systems

  • 2478610S PTO Canister Muffler Kit-Center Outlet
  • 2478611S PTO Canister Muffler Kit-Filter Side Outlet
  • 2478612S PTO Canister Muffler Kit-Starter Side Outlet
  • 2478619S Side Mount Muffler Kit-Starter Side
  • 2478620S Side Mount Muffler Kit-Filter Side
  • 2478621S Raised Body PTO Canister Kit-Filter Side Outlet
  • 2478622S Raised Body PTO Canister Kit-Starter Side Outlet

Specs

  • Model: PACH730-3000
  • UPC: 885612767707
  • Shipping Weight: 114lbs
  • Manufactured by: Kohler
